Specifications & Standard
| Design & Manufacturer | ASME B16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B16.10 / 150# |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Size Range | 1/2″ to 14″ |
| Temperature Range | -50°C To 300°C For Soft Seated Valves. Contact Works For Special Requirement (On Request) |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M, INCONEL |
| Ball Type | Hollow & Solid |
| Certification | Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved |
| Leakage Class | ISO 5208 Class VI / ASME B16.104 / ANSI FCI 70-2 (Bubble Tight Shutoff) |
| End Connection | ASME B16.5 CLASS 150 / 300 FOR FLANGED |
| Pressure Class | 150# |
| Media | Air / Water / Oil & Gas Etc… |
| Body Material | CF8, CF8M, CF3M, SS 304L, WCB, Ductile Iron (DI), Duplex, Hast Alloy, Monel |
| Stem Material | AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, Duplex 2205, Duplex 2507, Monel |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Flange Drilling | ASME B16.5 Class 150# / 300# / DIN / JIS |
Quality over quantity

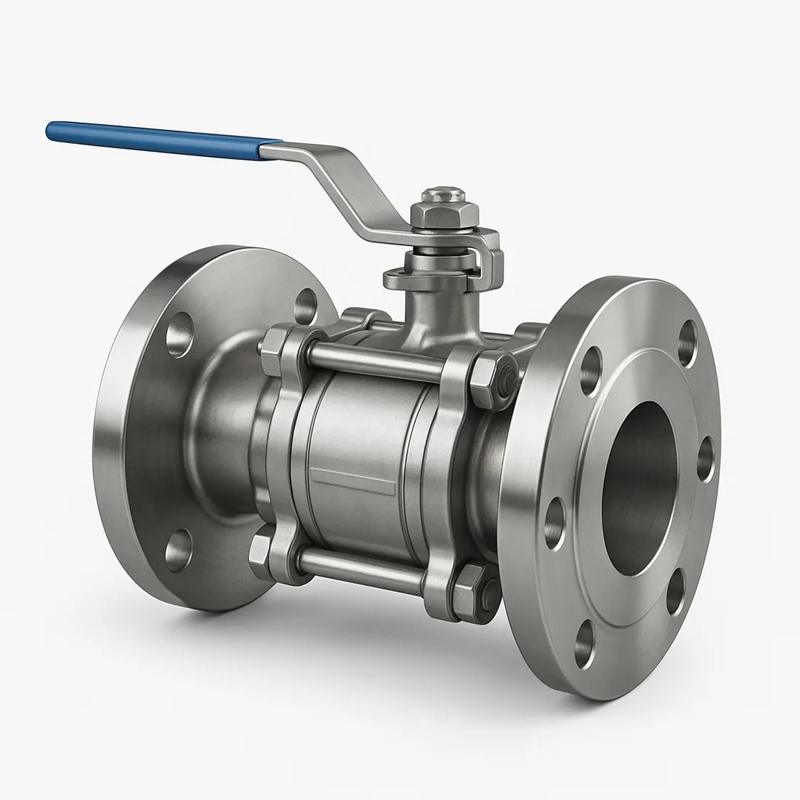

Handle Operated
Precision-engineered stainless steel valve with a manual handle for easy flow control. Its 3-piece design allows convenient maintenance without removing the valve from the pipeline. Ideal for industrial, chemical, and water applications.
Read the full storyQuality over quantity
Gear Operated
Heavy-duty stainless steel valve with a gear-operated mechanism for smooth and accurate flow control. The 3-piece design enables easy inline maintenance, making it perfect for demanding industrial and chemical processes.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
High-performance stainless steel valve with a pneumatic actuator for fast and automated flow control. The 3-piece design allows easy servicing without removing the valve from the pipeline. Ideal for industrial automation and process control.
Read the full storyQuality over quantity
Electric Actuator Operated
Robust stainless steel valve with an electric actuator for precise and remote flow control. Its 3-piece design enables easy maintenance while in-line, making it ideal for automated systems in industrial and chemical applications.
Read the full story
