Specifications & Standard
| Design & Manufacturer | API 609 CATEGORY “B” / MSS SP – 68 / BS EN – 593 |
| Valve Face To Face Dimension | API 609 CATEGORY “B” / ISO 5752 / MSS SP – 68 / BS EN – 558 |
| Flange Standard Conformity | ASME / ANSI B16.5 Class 150, ASME / ANSI B16.47 Series “A” & “B” Class 150, DIN 1092-1 |
| Inspection & Testing | API 598 / BS EN 12266-1 / AWWA C 504 / AWWA C 516 / IS 13095 |
| Pressure Temperature Rating | ASME B 16.34 |
| Top Flange Drilling | Bolt Hole ISO 5211 |
| Stem Dimension | Square Drive To ISO 5211 |
| Seat Leakage Class | Class VI As Per ANSI B16.104 / FCI-70-2 / ISO 5208 |
| End Connection | Wafer Type – D/F – AWWA C 504 / D/F – IS 13095 – 150#, 300#, 600#, PN-10, PN-16, PN-20, PN-25 |
| Certification | Design CE Approved, SIL3 Approved, Fire Safe Design Approved |
| Size Range | 2.1/2″ To 48″ (65 MM To 1200 MM) |
| Temperature Range | NBR -10°C To +90°C, EPDM -20°C To +120°C, VITON -0°C To +220°C, PTFE -25°C To +180°C |
| Pressure Class | 150#, 300#, 600#, PN-10, PN-16, PN-20, PN-25 |
| Media | Water, Oil, Steam, Air, Gas, Chemical & Vacuum |
| Leakage Class | Class VI As Per ANSI B16.104 |
| Body Material | Cast Iron, Ductile Iron, S.G Iron, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, Hastelloy C, Nickel Aluminium Bronze, Duplex 4A, 5A, 6D, Super Duplex, Alloy 20 |
| Disc Material | Cast Iron, Ductile Iron, S.G Iron, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, Hastelloy C, Nickel Aluminium Bronze, Duplex 4A, 5A, 6D, Super Duplex, Alloy 20 |
| Seat Material | EPDM / NBR / VITON |
| Design Standard | API 609 / IS : 13095 / BSEN 593 / AWWA C 504 / AWWA C 516 |
| Flange Drilling | ASME B16.5 / B16.47 Class 150 |
Quality over quantity

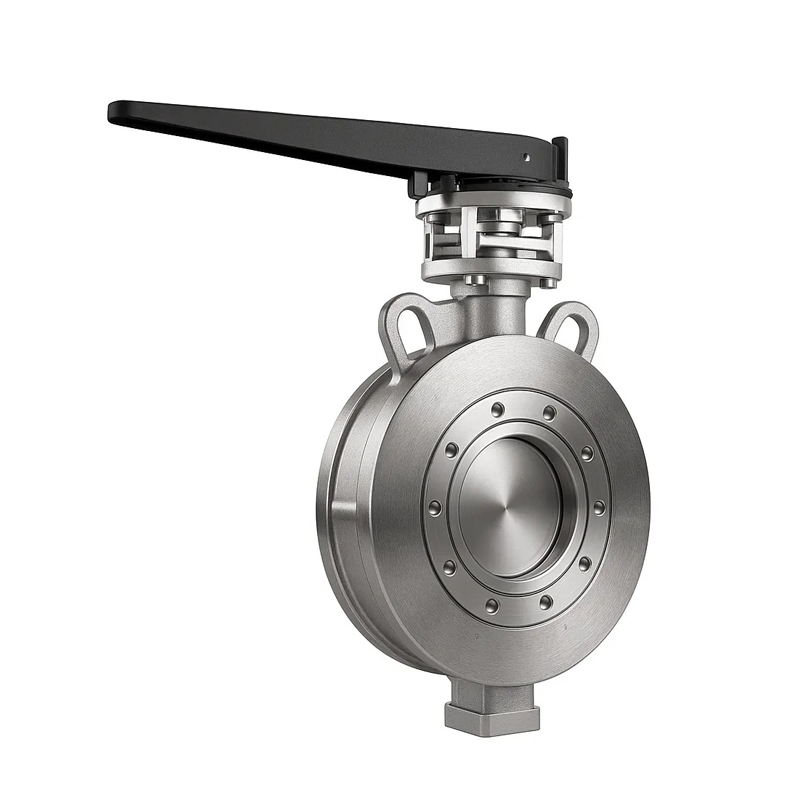

Handle Operated
This butterfly valve features a double offset disc design for reduced seat wear and enhanced sealing performance. Operated manually with a lever handle, it offers smooth and precise flow control. Its wafer-type body ensures compact installation, making it ideal for space-constrained industrial piping systems handling gases, liquids, or steam.
Read the full storyQuality over quantity
Gear Operated
This valve features a robust double offset disc design for improved sealing and reduced friction. Operated via a gear mechanism, it allows effortless and precise manual control, even in high-pressure applications. The wafer-type body offers easy installation between flanges, making it suitable for a wide range of industrial flow control systems.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
This valve is equipped with a pneumatic actuator that provides fast, efficient, and reliable flow control. Ideal for automation in industrial processes, it enables smooth quarter-turn operation, minimal manual intervention, and high cycle life for demanding applications.
Read the full storyQuality over quantity
Electric Actuator Operated
This valve is equipped with an electric actuator for precise and automated flow control. Designed for seamless integration into control systems, it offers reliable performance, smooth operation, and is ideal for remote and continuous industrial applications.
