Specifications & Standard
| Design & Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | As Per Manufacturer Standard |
| Inspection & Testing | API 598 / ISO – 5208 / BS EN 12266 – 1 |
| Size Range | 1/2″ To 14″ Flanged |
| Media | Air / Water / Oil & Gas |
| Body Material | CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL CF8, CF8M |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Flange Drilling | ASME B 16.5 Class 150# / 300# / DIN / JIS |
| Leakage Class | ISO 5208 Class VI / FCI – 70-2 / ASME, ANSI B16.16.104 |
| End Connection | ISO 7-1 FOR BSPT / ASME B 1.201 FOR NPT FOR S/E |
| Temperature Range | -50°C To 300°C For Soft Seated Valves. Contact Works For Special Requirement |
| Pressure Class | 150#, 300# |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Ball Type | Hollow, Solid |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
Quality over quantity

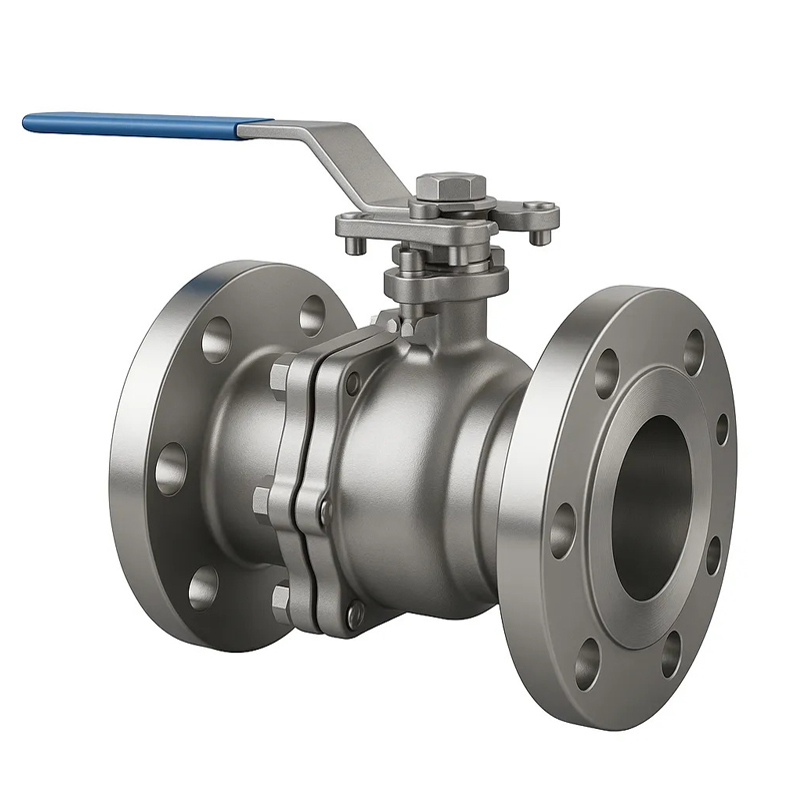

Handle Operated
Durable stainless steel valve with manual handle operation for smooth flow control. Features flanged ends for easy installation and maintenance. Ideal for industrial, water, oil & gas, and chemical applications.
Read the full storyQuality over quantity
Gear Operated
Heavy-duty stainless steel valve with gear-operated mechanism for precise flow control. Built for high-pressure applications with flanged ends for secure installation. Suitable for oil & gas, chemical, and industrial systems.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
Automated stainless steel valve powered by a pneumatic actuator for efficient and remote flow control. Ideal for high-speed operations in industrial, chemical, and process automation systems.
Read the full storyQuality over quantity
Electric Actuator Operated
Reliable stainless steel valve with electric actuator for precise, automated flow control. Suitable for remote operation in industrial, water treatment, and chemical processing systems.
Read the full story
