Technical Specifications
| Design & Manufacturer | ASME B16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | As Per Manufacturing |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Flange Standard Conformity | ASME B16.5 Class 150 |
| End Connection | ASME B16.5 CLASS 150 for Flange End |
| Size Range | 1/2″ to 8″ Flange End 150# |
| Temperature Range | -50°C to 300°C for Soft Seated Valves. Contact Works for Special Requirement |
| Pressure Class | 150# |
| Media | Air / Water / Oil & Gas |
| Body Material | WCB, CF3, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, Ductile Iron, S.G Iron |
| Ball Material | CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX |
| Ball Type | Hollow / Solid Ball |
| Stem Material | CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH |
| Seat Material | PTFE, RPTFE, MODIFIED PTFE, AIRA-250 |
| Flange Drilling | ASME B16.5 Class 150# |
| Certification | Design CE Approved, Fire Safe, POD |
Quality over quantity

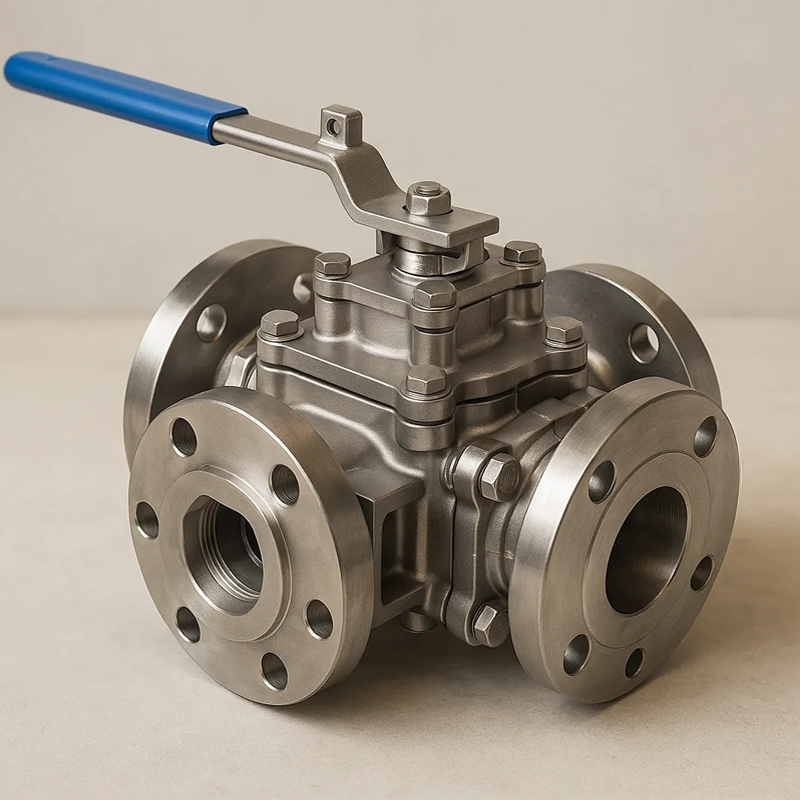

Handle Operated
Versatile and compact, this manually operated multi-port ball valve allows efficient flow direction control between multiple ports. With a durable handle mechanism, it’s ideal for complex piping systems in industrial and process applications.
Read the full storyQuality over quantity
Gear Operated
Engineered for precision and durability, this gear-operated multi-port valve offers smooth flow control across 3, 4, or 5 ports. Ideal for complex flow patterns in industrial systems, it ensures reliable performance under high pressure and temperature.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
This multi-port valve features a pneumatic actuator for fast, automated flow direction control across 3, 4, or 5 ports. Designed for efficiency and reliability in process systems handling air, gas, liquids, or chemicals.
Read the full storyQuality over quantity
Electric Actuator Operated
Equipped with an electric actuator, this multi-port valve offers precise and automated control of complex flow paths across 3, 4, or 5 ports. Ideal for remote operation in industrial, chemical, and fluid handling systems.
Read the full story
