Specifications & Standard
| Size Range | 1.1/2″ To 48″ (40MM To 1200MM) |
| Temperature Range | -20°C To 80°C For Nitrile Seat (Depending On MOC) |
| Pressure Class | PN 10 / PN 16 ( PN 20 On Request ) |
| Body Style | Double Flanged |
| Seat Materials | NBR / Nitrile / EPDM / Viton / Hypelon / Silicon / Neoprene |
| Flange Drilling | IS 6392 / EN 1092 – 1 / EN 1092 – 2 / ASME B 16.5 150# |
| End Connection | Double Flange As Per ASME B16.5 / ASME B 16.47 Class 150 |
| Body Materials | S.G.I / WCB / Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN |
| Stem Materials | SS 304 / 316 / 410 / 17 – 4 PH / Super Duplex 2507 / 2205 |
| Disc Materials | Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN / S.G. Iron with Teflon / Teflon / Powder / Nylon Coated / Rubber Line / ASTM A – 995 |
| Design And Manufacturer | Short Wafer type Double Flanged Centric Disc Butterfly Valves with Single Piece Rubber Lined Body |
| Testing Standard | BSEN 12266 – 1, API 598 |
| Face To Face | BSEN 558 |
Quality over quantity

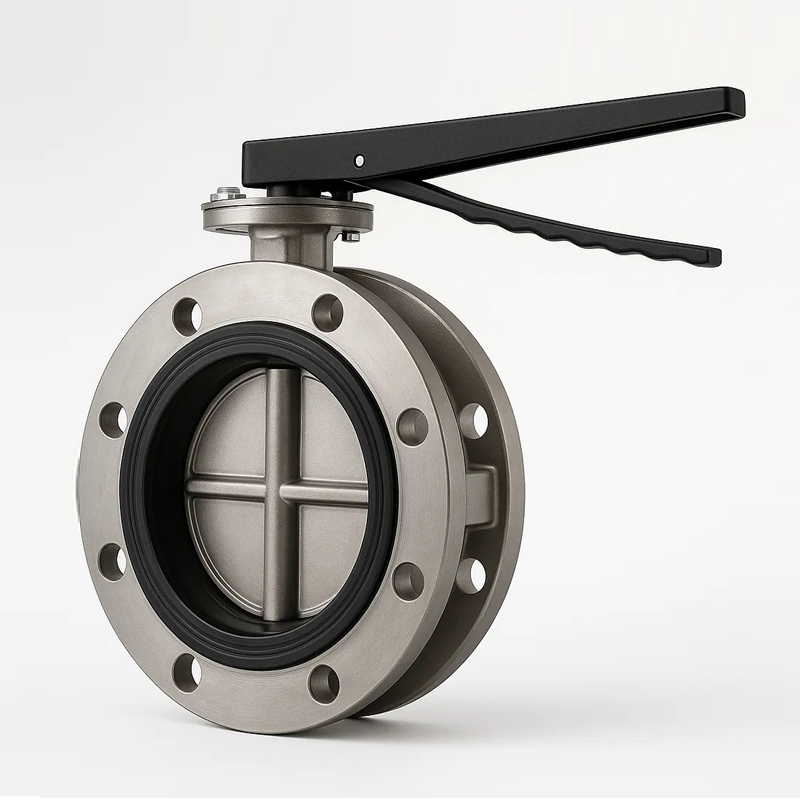

Handle Operated
This valve features a high-quality rubber lining for excellent sealing, corrosion resistance, and durability. Operated manually using a lever handle, it allows smooth and precise flow control. The double flanged body ensures secure mounting, making it suitable for water, wastewater, and chemical processing industries.
Read the full storyQuality over quantity
Gear Operated
This butterfly valve features a durable rubber lining for enhanced sealing and resistance to corrosion. Operated through a gear mechanism, it offers smooth, controlled, and effortless manual operation. The double flanged design ensures strong and leak-proof installation, ideal for water supply, wastewater treatment, and chemical processing systems.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
This valve is equipped with a pneumatic actuator for fast, reliable, and automated flow control. The rubber lining provides excellent sealing and chemical resistance, while the double flanged body ensures secure installation. Ideal for high-cycle operations in water treatment, chemical, and industrial process applications.
Read the full storyQuality over quantity
Electric Actuator Operated
This electric actuator operated butterfly valve ensures smooth and accurate flow control with its rubber lining and double flanged design. Ideal for automated systems in water, chemical, and industrial applications.
Read the full storyQuality over quantity
Electric Automation
Engineered for electric automation, this rubber lined double flanged butterfly valve offers reliable and efficient flow control. Suitable for water treatment, chemical processing, and industrial automation systems.
Read the full story
