Specifications & Standard
| Size Range | 1″ To 48″ (25MM To 1200MM) |
| Tempreature Range | -25°C To 80°C (Depending On MOC) |
| Pressurre Class | PN 6 / 10 / 20 & 25 |

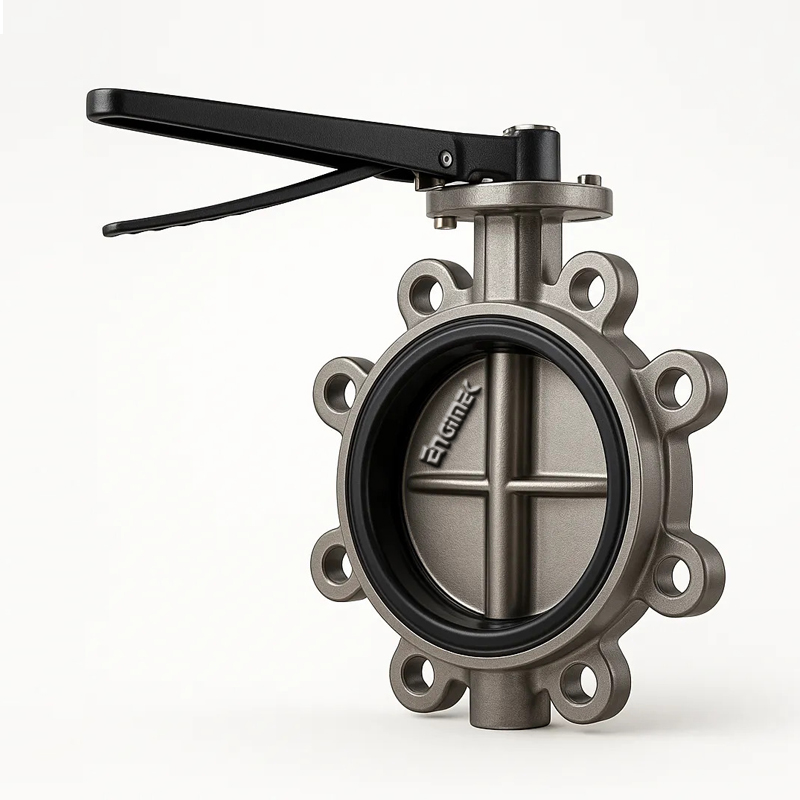

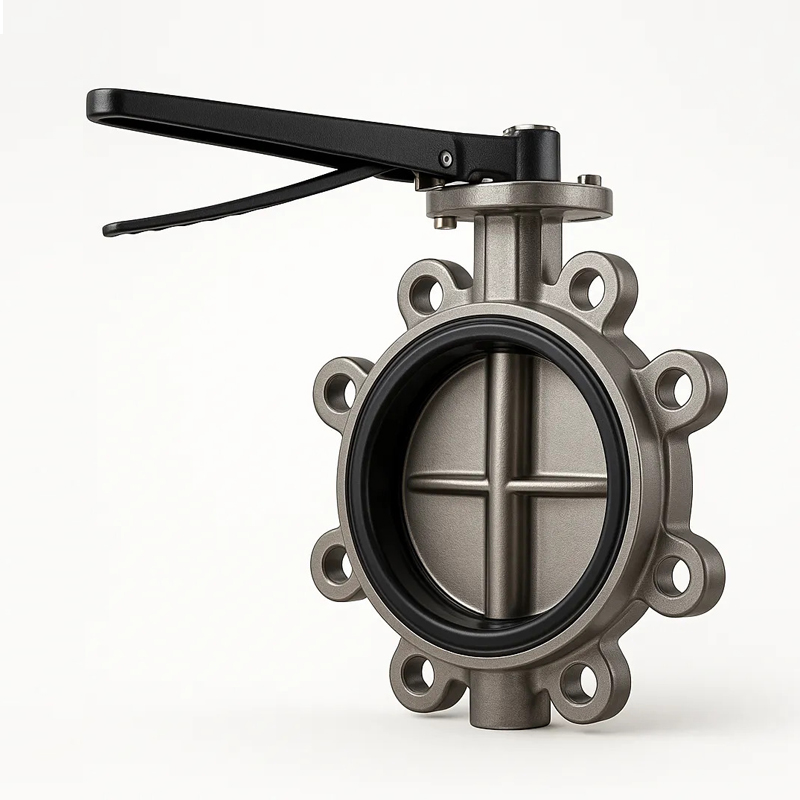

| Body Type | Short Wafer Type Lug |
| Seat Type | Intergrally moulded with the bod (Renewable Seat On Request) |
| Flange Drilling | IS 6392 / EN 1092 – 1 / EN 1092 – 2 / ASME B 16.5 150# |
| Body Materials | S.G.I / C.I / D.I / WCB |
| Stem Materials | SS 304 / 316 / 410 / 17 – 4 PH / Super Duplex 2507 / 2205 |
| Seat Materials | NBR / EPDM |
| Disc Materials | S.G.I / CF8 / CF8M / CF3M / ASTM A – 995 |
| Seat Leakage | Tight Shut Off ( Class VI ) |
| Flange Drilling | ISO 5211 |
| Design And Manufacturer | API 609 Category A / IS : 13095/ BS EN 593 |
| Valve Face To Face Dimension | Short Wafer As Per ISO 5752 TAB 5 / API 609 Category A ISO 5752 TAB 1 ( BS 5155 ) |
| Flange Standard | ASME B16.5 / ASME B 16.47 Series “A” Class 150 |
| Inspection & Testing | API 598 / BS EN 12266 – 1 |
| End Connection | Wafer type double flange suit #150, Table ‘D’, Table ‘E’ & IS 6392 Table 11 (PN / PN 1.6) |
