Specifications & Standard
| Size Range | 1.1/2″ To 60″ (40MM To 1500MM) |
| Tempreature Range | -20°C To 80°C For Nitrile Seat (Depending On MOC) |
| Pressurre Class | PN 10 / PN 16 (PN 20 On Request) |

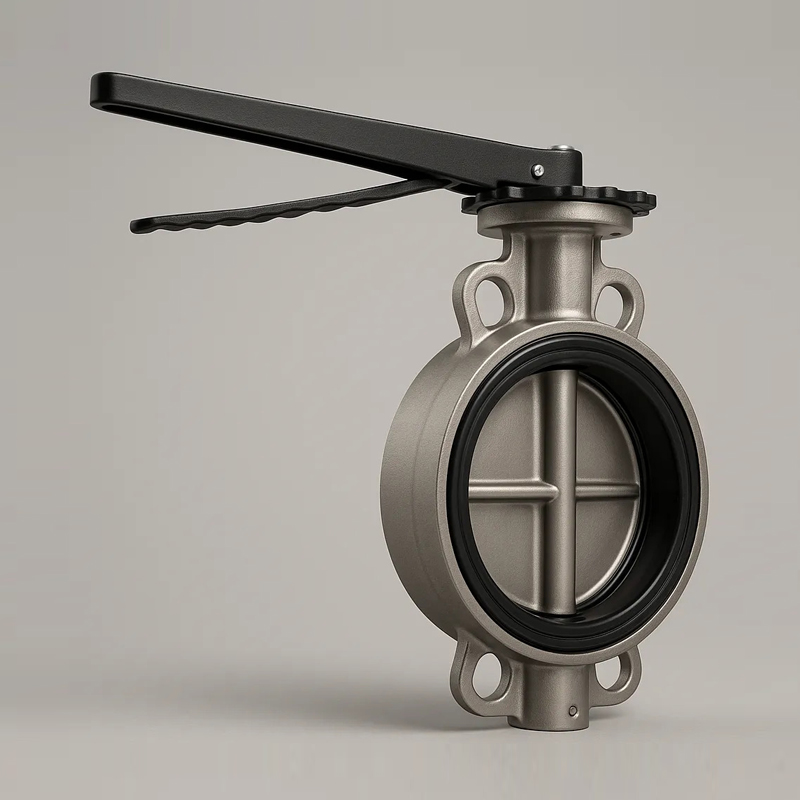

| Body Style | Wafer Type |
| Flange Drilling | IS 6392 / EN 1092 – 1 / EN 1092 – 2 / ASME B 16.5 150# |
| Body Materials | S.G.I / C.I / D.I / WCB / CF8 / CF8M / CF3M / SS 304L / DUPLEX / HAST ALLOY / MONEL |
| Stem Materials | SS 304 / 316 / 410 / 17 – 4 PH / Super Duplex 2507 / 2205 |
| Seat Materials | NBR / EPDM PTFE / MODIFIED PTFE / RPTFE / CFT / GFT / DEVLON / PEEK / NYLON / AIRA-250 |
| Disc Materials | S.G.I / CF8 / CF8M / CF3M / WCB + ENP / HAST ALLOY / DUPLEX / MONEL / ASTM A – 995 |
| Seat Leakage Class | Tight Shut Off |
| Flange Standard Conformity | ASME B16.5 / 16.47 Series A Class 150 |
| Top Flange Drilling | ISO 5211 |
| Design And Manufacturer | API 609 Category A / IS:13095 / BS EN 593 |
| Valve Face To Face Dimension | Short Wafer As Per ISO 5752 TAB 5/API 609 Category A ISO 5752 TAB 1 / BS EN-593 / BS EN-558 |
| Inspection & Testing | API 598 / BS EN 12266 -1 |
| End Connection | Wafer type Suit 150#, Table’D’, Table’E’ & IS 6392 Table 11 ( PN 10 / PN 16 ) |
| Certification | Design CE Approved, SIL3 Approved, POD Approved |
