Specifications & Standard
| Size Range | 1.1/2″ To 36” |
| Temperature Range | -25°C To 250°C (Soft Seating) |
| Design & Manufacturer | API 609 Category B / BS EN 593 |
| Valve Face To Face Dimension | API 609 Category B |
| Flange Standard Conformity | ANSI B 16.5 Class 150 |
| Inspection & Testing | API 598 / EN 12266 Part – 1 |
| Fire Safe Testing | API 607 |
| Pressure Temperature Rating | ASME / ANSI B 16.34 |
| Seat Leakage Class | Class VI |
| Top Flange Drilling | ASME B16.5 / 16.47 Class 150 |
| End Connection | Wafer Type 150# PN-10 |
| Operating | Pneumatic Actuator Operated |
| Plate Mounting | Namur Standard |
| Pressure Class | 150#, PN-10 |
| Media | Water, Oil, Steam, Air, Gas, Chemical |
| Leakage Class | Class VI |
| Body Material | CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Disc Material | CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Seat Material | PTFE |
| Certification | Design CE Approved, SIL3 Approved |
| Construction Type | Double Eccentric Disc Design |
Quality over quantity

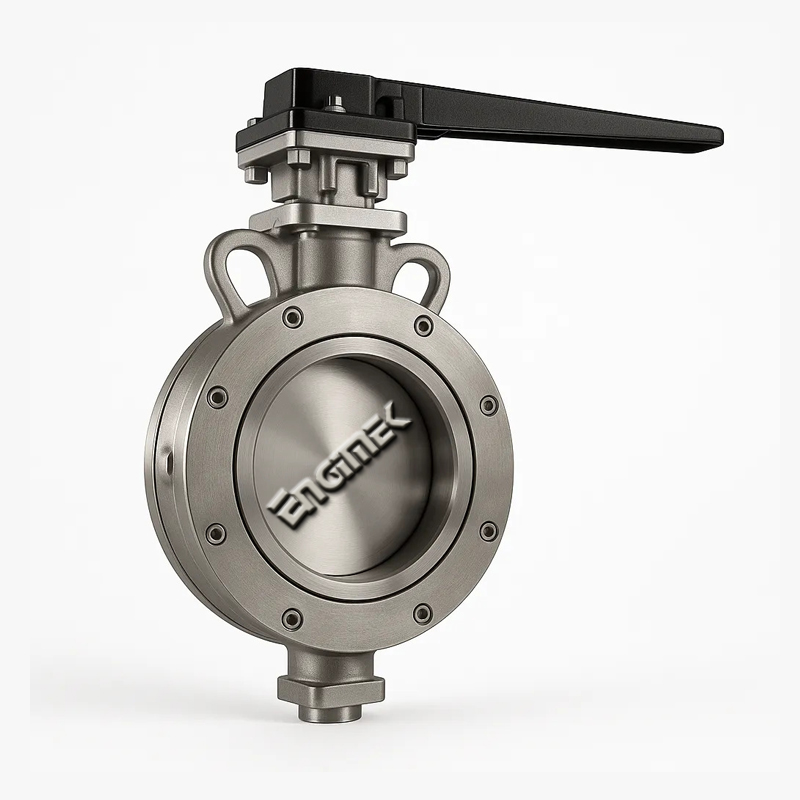

Handle Operated
This handle operated spherical disc butterfly valve offers precise manual control with a robust, compact design. Ideal for applications requiring reliable shut-off and throttling in water, chemical, and industrial systems.
Read the full storyQuality over quantity
Gear Operated
This gear operated spherical disc butterfly valve ensures smooth and accurate manual control with enhanced torque handling. Suitable for industrial applications requiring durability and reliable flow regulation.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
Designed for automated control, this spherical disc butterfly valve with pneumatic actuator delivers fast, efficient, and reliable operation. Ideal for industrial processes requiring precision and reduced manual intervention.
Read the full storyQuality over quantity
Electric Actuator Operated
Equipped with an electric actuator, this spherical disc butterfly valve ensures precise and automated flow control. Ideal for applications in water treatment, chemical processing, and industrial automation systems.
Read the full story
