Specifications & Standard
| Design & Manufacturer | API 609 Category “B” / BS EN 593 |
| Valve Face To Face Dimension | API 609 / BS EN 558 |
| Flange Standard Conformity | ANSI B16.5, 16.47 150# / 300# / 600# |
| Inspection & Testing | FCI-70-2 / B16.104 / ISO 5208 / BS EN 12266-1 |
| Pressure Temperature Rating | ASME B 16.34 |
| Top Mounting Standard | ISO 5211 |
| Stem Square Drive | ISO 5211 |
| Seat Leakage Class | IV / V / VI |
| Top Flange Drilling | ASME B16.5 / 16.47 Class 150 |
| End Connection | Wafer Type – D/F – AWWA C 504 D/F – IS 13095 – 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40 |
| Size Range | 1.1/2″ To 24″ (Above 24″ On Request) (40 MM To 600 MM) |
| Temperature Range | Up to 400°C |
| Pressure Class | 150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40 |
| Media | Water, Oil, Steam, Air, Gas, Chemical & Vacuum |
| Leakage Class | Class VI As Per ANSI B16.104 |
| Body Material | CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Disc Material | CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Seat Material | SS 304, SS 304L, SS 316, SS 316L, SS 304 + STELLITE 6, SS 316 + STELLITE 6, SS 316 + STELLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A |
| Certification | Design CE Approved, SIL3 Approved, Fire Safe Design Approved |
Quality over quantity

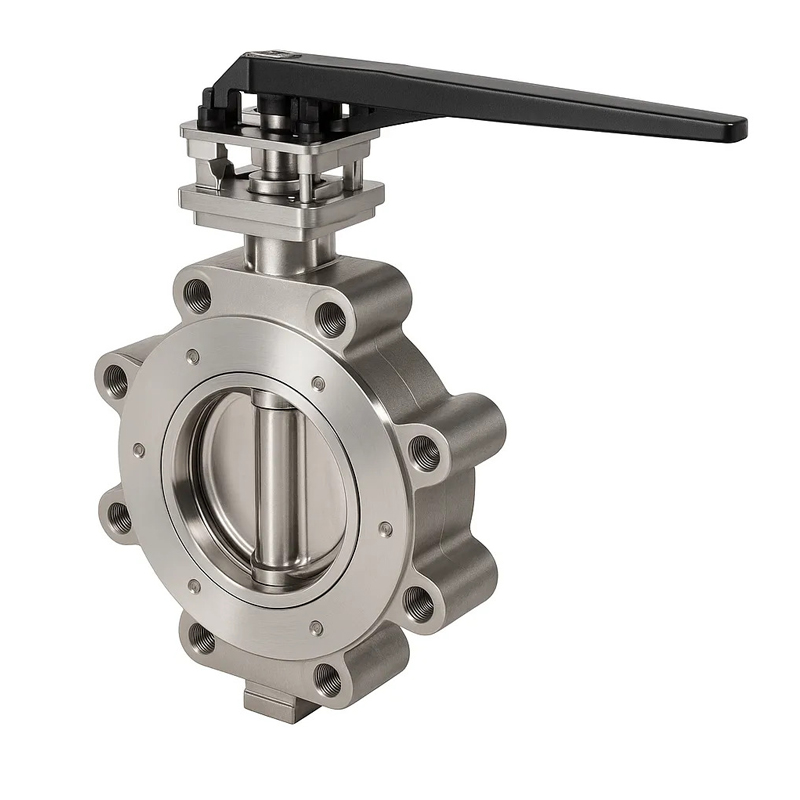

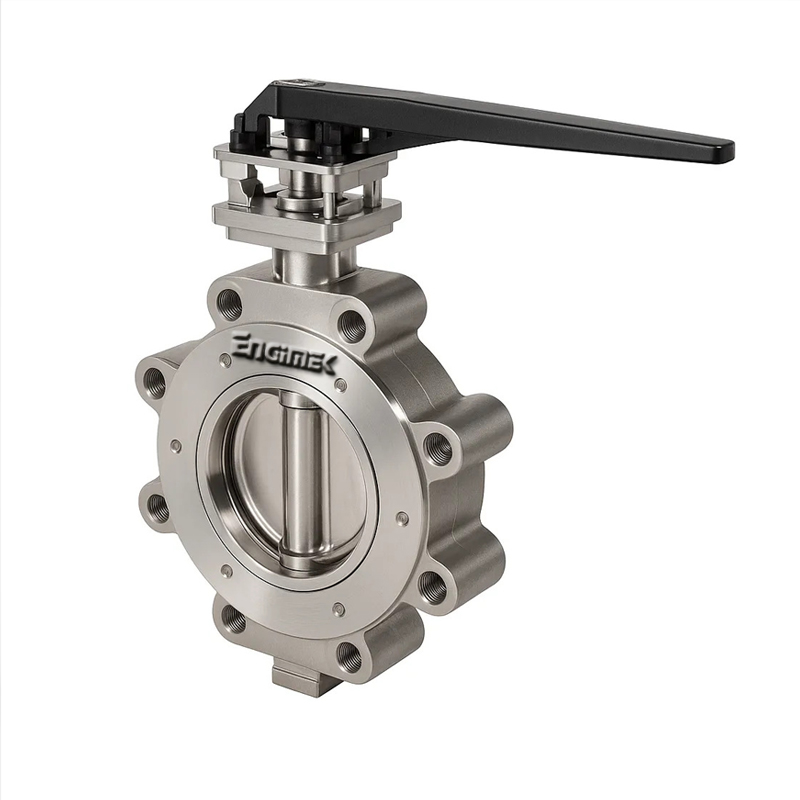

Handle Operated
Handle-operated triple offset lug type butterfly valves feature a manual lever for straightforward operation, controlling the valve disc to open or close. The triple offset design ensures a tight, zero-leakage seal with minimal friction, ideal for precise flow regulation in systems requiring frequent adjustments. Made from durable materials like carbon steel, stainless steel, or special alloys, these valves are perfect for industries such as oil and gas, chemical processing, and water treatment, offering resilience under high-pressure and high-temperature conditions.
Read the full storyQuality over quantity
Gear Operated
Gear-operated triple offset lug type butterfly valves use a gear mechanism to increase torque, making it easier to operate larger valves or those in high-pressure environments. The triple offset design delivers a bubble-tight seal and reduced wear, ensuring reliable shut-off and flow control. Constructed with robust materials like stainless steel or carbon steel, these valves are well-suited for demanding applications in petrochemicals, power plants, and refineries.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
Pneumatic actuator-operated triple offset lug type butterfly valves provide automated control via a pneumatic actuator, enabling precise and remote operation. The triple offset design ensures a leak-proof, metal-to-metal seal, ideal for high-pressure and high-temperature applications. Built with high-quality materials such as stainless steel or special alloys, these valves are designed for industries like oil and gas, chemical processing, and power generation, ensuring long-lasting performance and reliability.
Read the full storyQuality over quantity
Electric Actuator Operated
Electric actuator-operated triple offset lug type butterfly valves feature automated control through an electric motor, allowing precise and remote operation. The triple offset design provides a zero-leakage, metal-to-metal seal, making them ideal for high-pressure and high-temperature systems. Constructed with durable materials like stainless steel or special alloys, these valves are suited for industries such as oil and gas, chemical processing, and power generation, delivering consistent performance and durability.
