Specifications & Standard
| Design & Manufacturer | API 609 Category “B” / BS EN 593 |
| Valve Face To Face Dimension | API 609 / BS EN 558 |
| Flange Standard Conformity | ANSI B16.5, 16.47 150# / 300# / 600# |
| Inspection & Testing | FCI-70-2 / B16.104 / ISO 5208 / BS EN 12266-1 / API 598 / AWWA C 504 / AWWA C 516 / IS 13095 |
| Pressure Temperature Rating | ASME B 16.34 |
| Top Mounting Standard | ISO 5211 |
| Stem Square Drive | ISO 5211 |
| Seat Leakage Class | IV / V / VI |
| Top Flange Drilling | ASME B16.5 / 16.47 Class 150 |
| End Connection | Wafer Type – D/F – AWWA C 504 D/F – IS 13095 – 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40 |
| Size Range | 1.1/2″ To 48″ (Above 48″ On Request) (40 MM To 1200 MM) |
| Temperature Range | Up to 400°C |
| Pressure Class | 150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40 |
| Media | Water, Oil, Steam, Air, Gas, Chemical & Vacuum |
| Leakage Class | Class VI As Per ANSI B16.104 |
| Body Material | CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Disc Material | CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Seat Material | SS 304, SS 304L, SS 316, SS 316L, SS 304 + STELLITE 6, SS 316 + STELLITE 6, SS 316 + STELLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A |
| Flanged Drilling | ASME B16.5 / 16.47 Class 150 |
| Certification | Design CE Approved, SIL3 Approved, Fire Safe Design Approved |
Quality over quantity

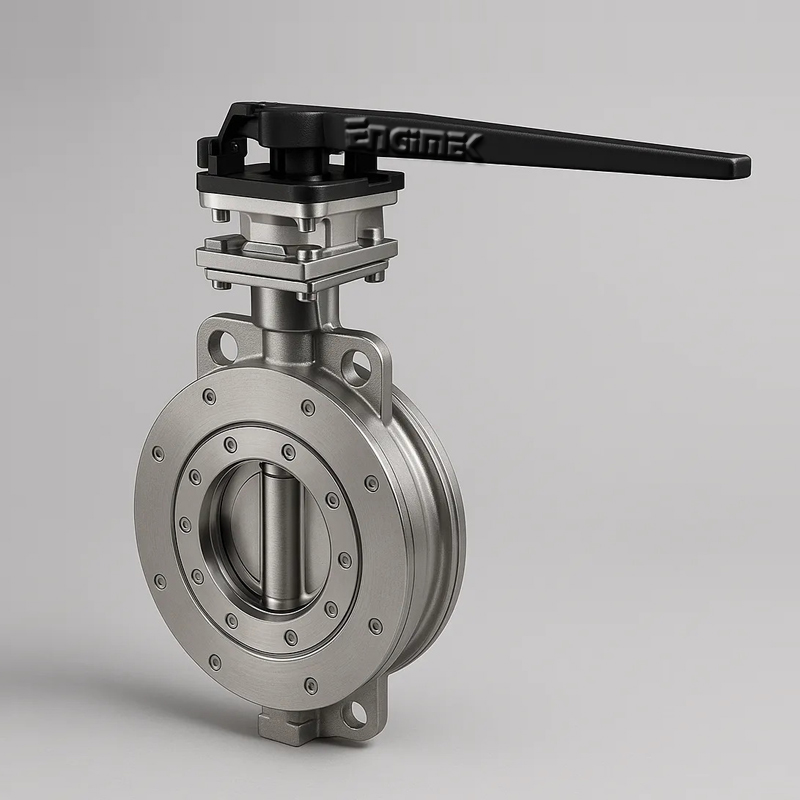

Handle Operated
Handle-operated triple offset wafer type butterfly valves feature a manual lever for easy operation, driving the valve disc to open or close. The triple offset design ensures a tight, bubble-free seal with minimal friction, ideal for precise flow control in compact systems. Constructed with high-quality materials like carbon steel, stainless steel, or duplex alloys, these valves are suited for industries such as oil and gas, water treatment, and chemical processing, offering durability under high-pressure and high-temperature conditions.
Read the full storyQuality over quantity
Gear Operated
Gear-operated triple offset wafer type butterfly valves utilize a gear mechanism to enhance torque, simplifying the operation of larger valves or those in high-pressure applications. The triple offset design provides zero-leakage sealing and reduced wear, ensuring reliable shut-off and flow control. Built with robust materials like carbon or stainless steel, these valves are ideal for demanding environments in petrochemicals, power plants, and refineries.
Read the full storyQuality over quantity
Pneumatic Actuator Operated
Pneumatic actuator-operated triple offset wafer type butterfly valves offer automated control through a pneumatic actuator, enabling precise and remote operation. The triple offset design ensures a leak-proof, metal-to-metal seal, making them suitable for high-pressure and high-temperature applications. Constructed with durable materials like stainless steel or special alloys, these valves are perfect for industries such as oil and gas, chemical processing, and power generation, ensuring long-term reliability and performance.
Read the full story
